HXP450/6-1

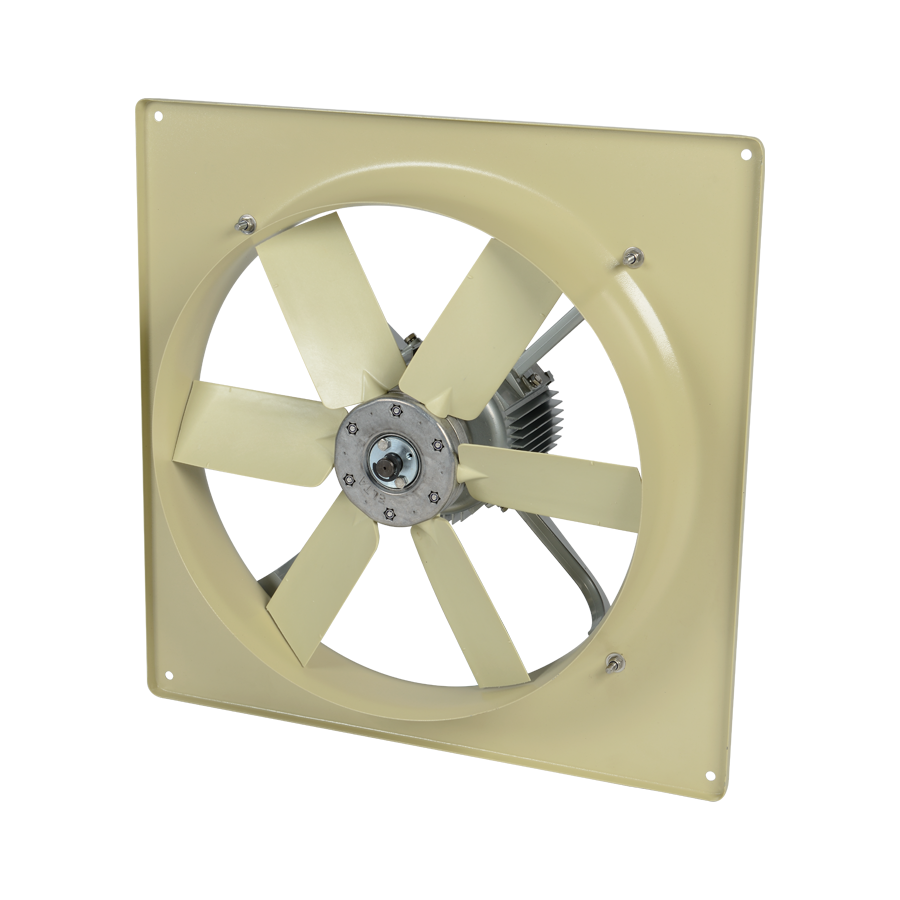

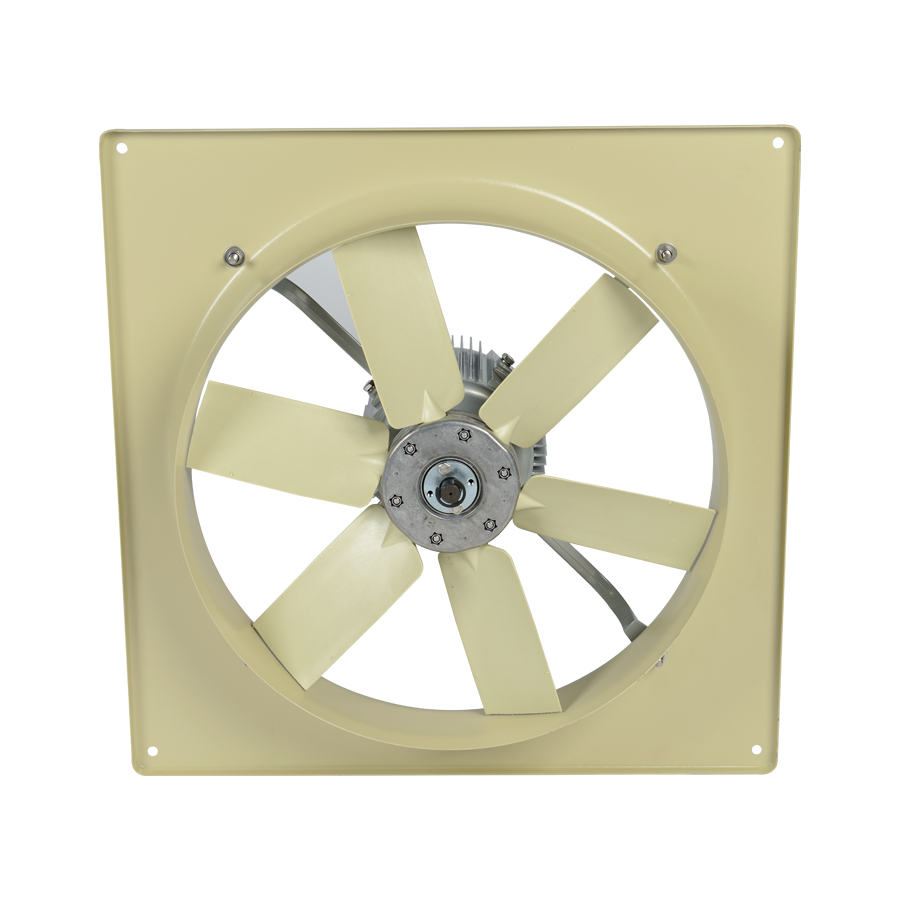

Plate Mounted Axial Flow Fan
- Standard size 450mm
- Air volume flow rates up to 1.329 m3/s
- Static pressures up to 73 Pa
- Suitable for operating temperatures up to +70℃ or when under speed control +55℃
- Available in AC
Overview
With a heavy duty construction, the HXP range is a high quality, hard working range of propeller fans designed to pass large volumes of air with higher efficiencies to conform to current European ErP legislation. HXP Fans have a highly efficient and robust motor, suitable for speed control, with proven reliability for long life and trouble free operation.
Downloads
Specification
Casing
The all metal fan casing provide a long lasting and robust construction. The units have been constructed from mild steel and suitably treated to ensure full corrosion protection. Fan plates shall have a powder coated polyester epoxy paint finish in pastel beige (RAL 7032).

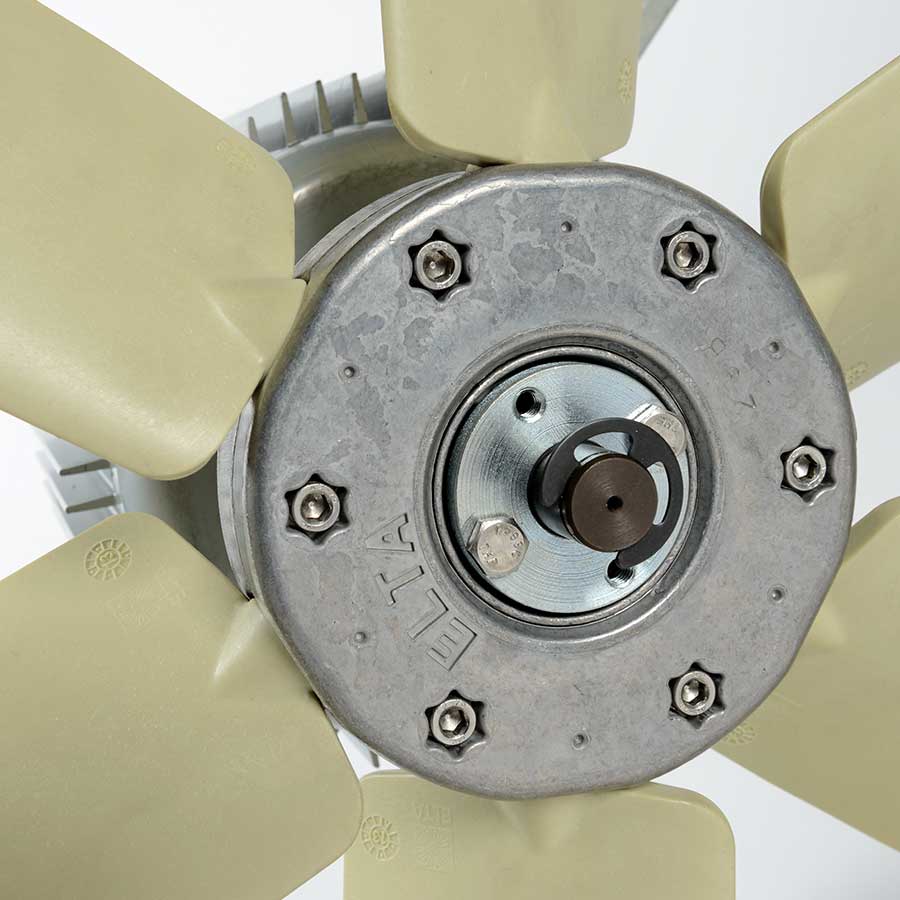

Impeller
Adjustable pitch aerofoil impellers are provided with blades made from high quality GRP. Impellers are factory set at an angle to provide maximum performance. The hubs are manufactured from die cast aluminium alloy (LM24). Assembled impellers are to be dynamically balanced to ISO 14694 Grade G6.3.
Motors
Cool running TENV motors constructed with a finned aluminium casing to give excellent heat dissipation and increased lifecycle.
Electrical
Units are suitable for single phase 220 to 240V / 50Hz and three phase 380V to 415V / 50Hz operation.
Warranty
All HXP units have a 12 month warranty.
