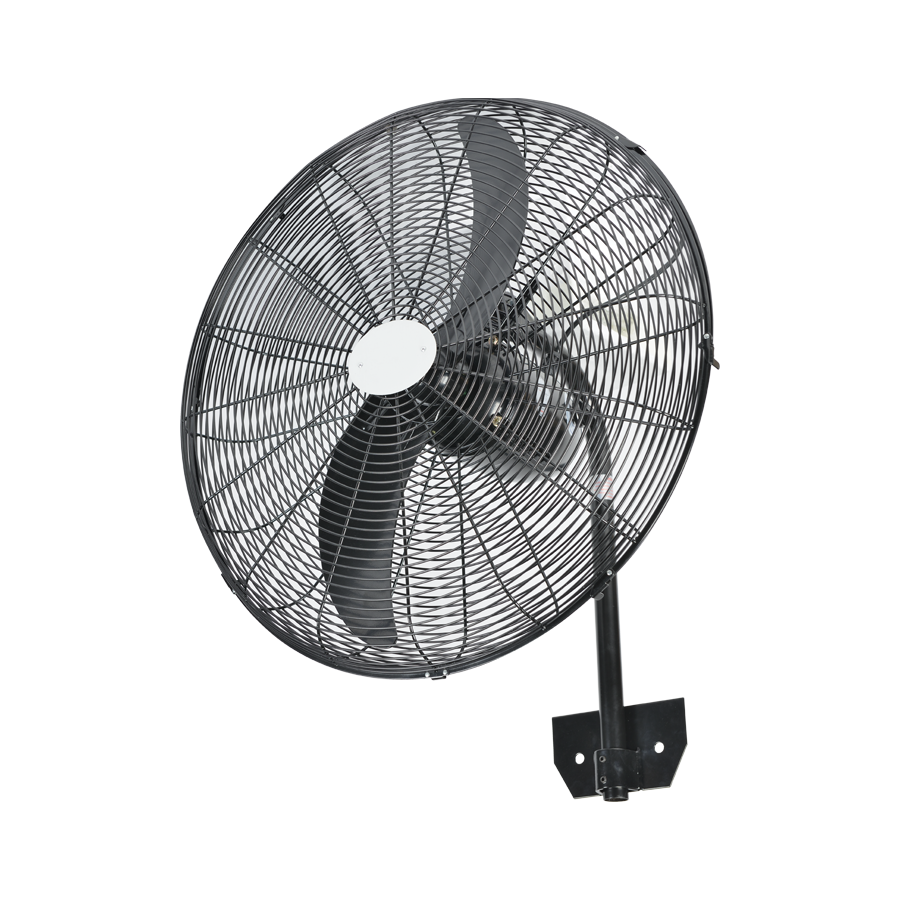

HWFA650
Wall Mounted Circulating Fan
- Standard size 650mm
- Air volume flow rates up to 3.83 m3/s
- Three speed settings
- Suitable for operating temperatures up to +45℃
- Smooth oscillation through 90° arc
- 30° Adjustable airflow direction
- Available in AC
Overview
The Wall Mounted HWFA Fan is an air circulation fan designed to provide powerful and effective positive air movement, improving the environmental conditions in a wide variety of industrial, commercial and residential building services applications.
Downloads
Features and Benefits
Construction
The all metal fan casing provides a long lasting robust construction. Guards are black painted wire with additional radial supports to provide increased stiffness.
Warranty
Each HWFA has a 12 month warranty.
Specification
Motors
Motors are three speed induction, with sealed for life bearings, suitable for operating temperatures up to +45 ℃.
Impeller
The fan blades are constructed from high quality aluminium, fully balanced, with epoxy powder coated finish in black.
Electrical
All units are suitable for Single Phase 220V to 240V 50Hz operation.
