HPFA650
Pedestal Circulating Fan
- Standard size 650mm
- Air volume flow rates up to 3.83 m3/s
- Three speed settings
- Adjustable height
- Suitable for operating temperatures up to +45℃
- Smooth oscillation through 90° arc
- 30° Adjustable airflow direction
- Available in AC
Overview

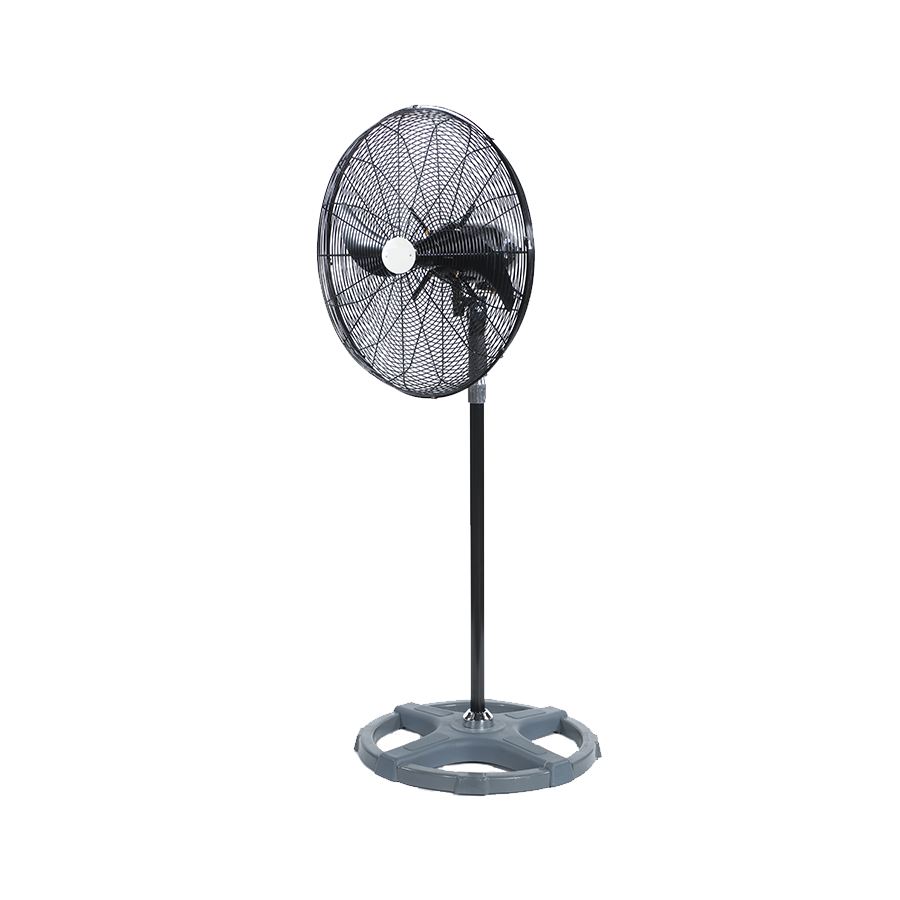

The HPFA Pedestal Fan is a floor mounted air circulation fan designed to provide powerful, effective positive air movement, improving the environmental conditions in a wide variety of industrial, commercial and residential building services applications.
Downloads
Features and Benefits
Construction

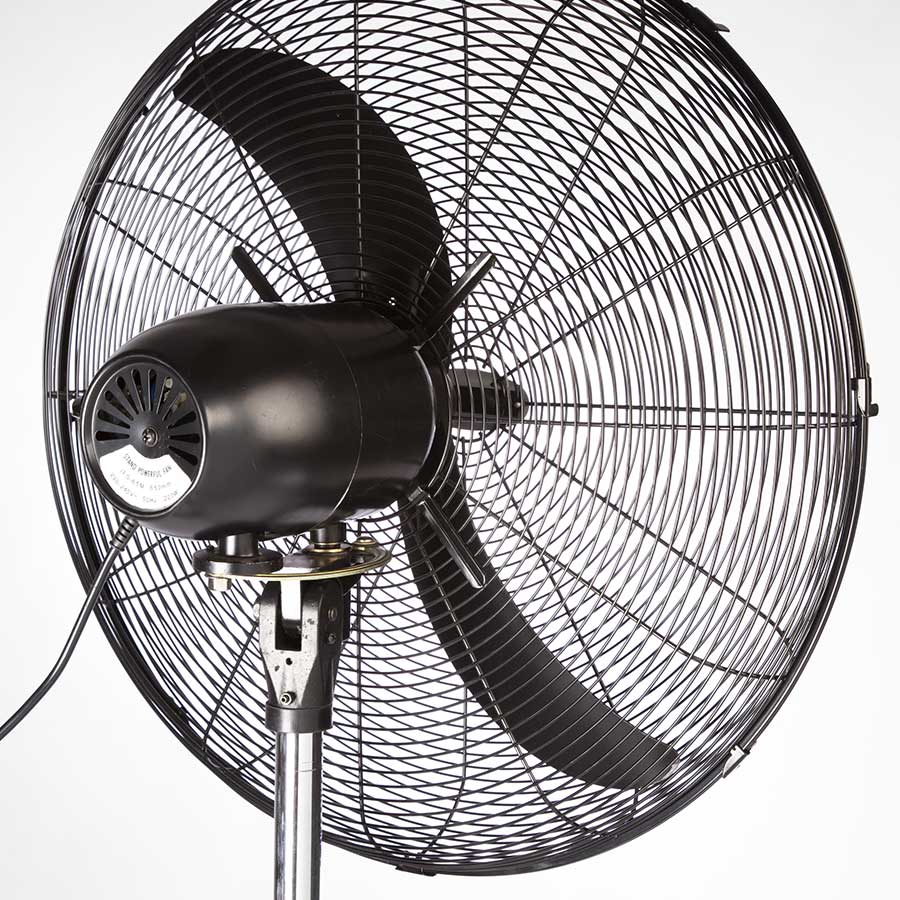

The all metal fan casing provides a long lasting robust construction. Guards are black painted wire with additional radial supports to provide increased stiffness. The HPFA is supported by a heavy duty cast iron base which provides added sturdiness and durability for the unit.
Warranty
Each HPFA has a 12 month warranty.
Specification
Motors
Motors are three speed induction, with sealed for life
bearings, suitable for operating temperatures up to +45 ℃.
Impeller
The fan blades are constructed from high quality aluminium, fully balanced, with epoxy powder coated black finish for aesthetic appearance.
Electrical
All units are suitable for Single Phase 220V to 240V 50Hz operation.
