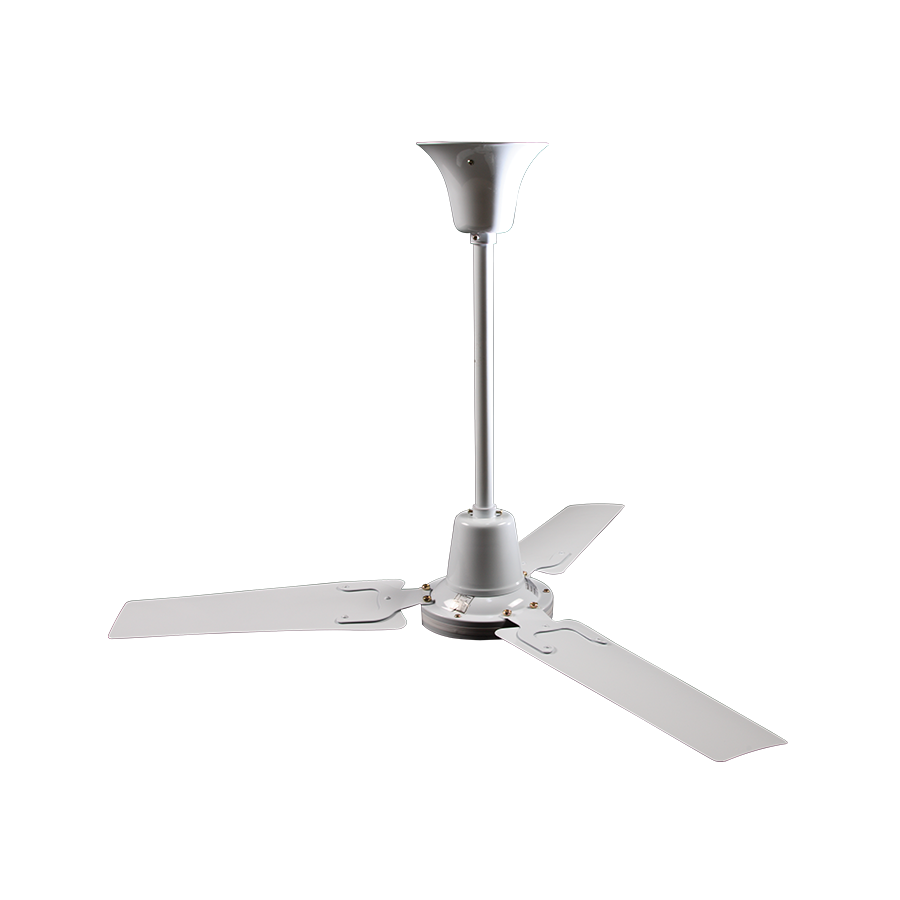

HCF1200
Destratification Ceiling Mounted Fan
- Standard size 1200mm
- Eliminates heat stratification in winter
- Continuous cooling in summer
- Suitable for operating temperatures up to +40℃
- Fully reversible
- Available in AC
Overview
The HCF range of Ceiling Mounted Destratification Fans are specifically designed to destratify large spaces by forcing warm / heated air down towards floor level. HCF units are also designed to provide positive air movement for continuous cooling.
Downloads
Features and Benefits
Easy Installation
HCF Ceiling Fans are controlled by a variety of control types to meet various environment requirements. All controllers are infinitely variable with solid state components, insulated spindle, white cover plate and are suitable for surface mounting only.
Casing
The all metal fan casing provides a long lasting robust construction. The units also have an additional safety steel cable which passes through the drop rod, connecting the motor body to the J-hook mounting bracket.
Controllability
The HCFC1.7 reversing ceiling fan controller provides control to match changing environmental conditions. Each HCFC1.7 controller has been specifically designed to provide control of either one, or up to 5, HCF fans.
Warranty
Each HCF has a 12 month warranty.
Specification
Motors
Motors are capacitor start and run motor fitted with ball bearings, Class E insulation, suitable for +40 ℃ ambient operating temperature.

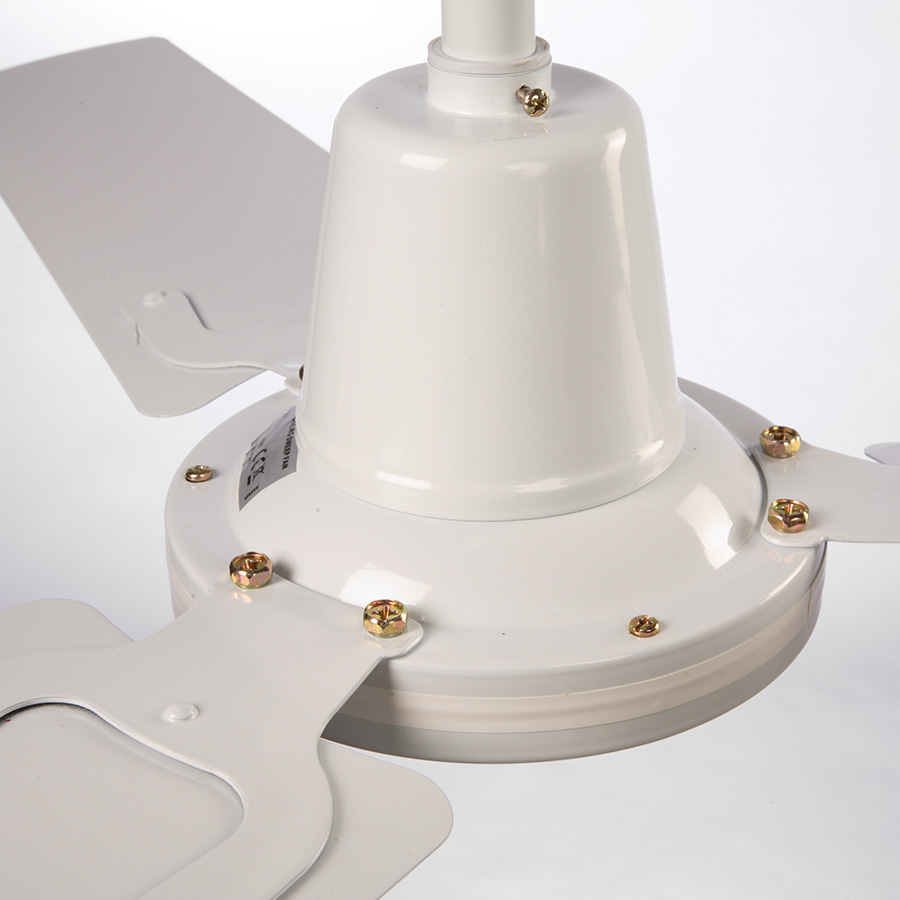

Impeller
The fan blades are constructed from high quality steel, fully
balanced, with epoxy powder coated finish.
Electrical
All units are suitable for Single Phase 220V to 240V 50Hz operation.
Quality Management
Units are to be designed and manufactured with procedures as defined in BS EN ISO 9001:2008.
